Real-time door management via interactive software

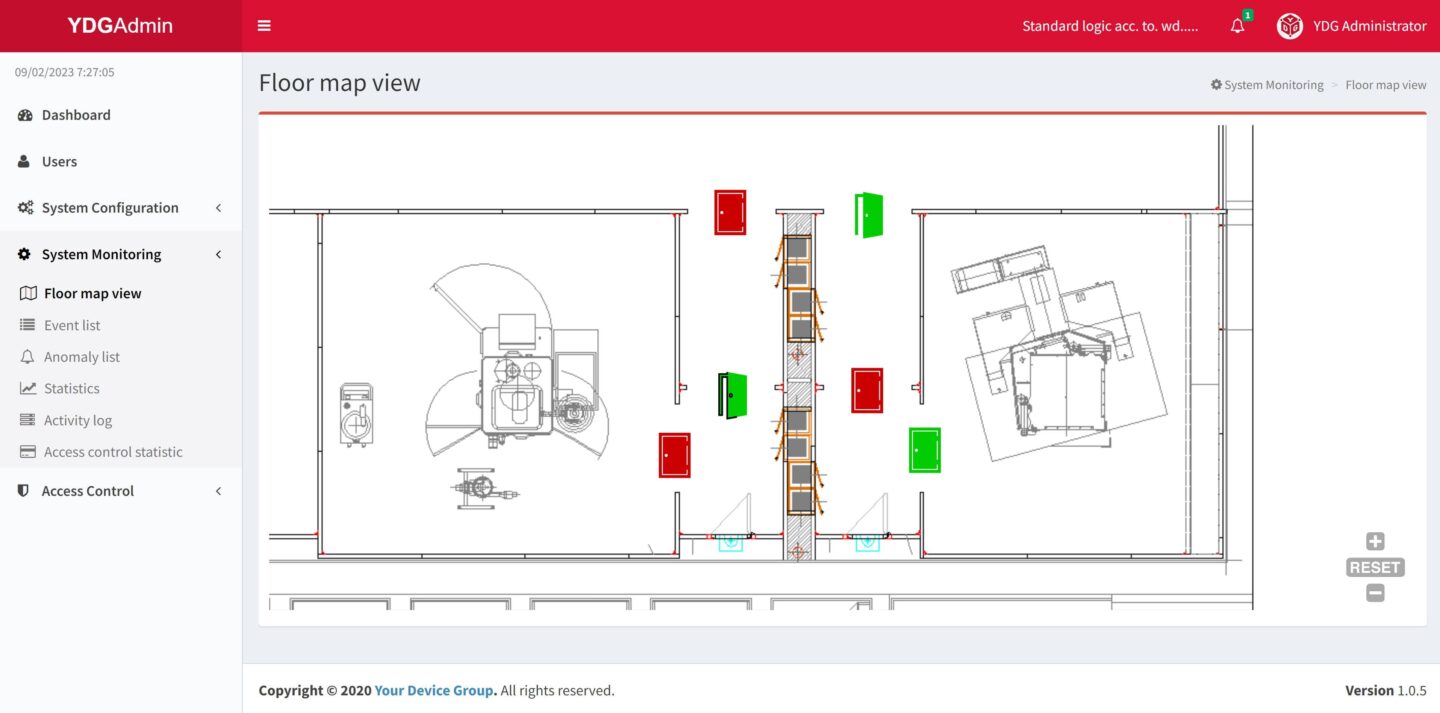

Mesh is an interactive door interlocking solution for cleanrooms, configurable via a graphical interface. The software visualizes in real time the operation of the interlocks on an animated layout and saves the events in a database. To maintain the GMP environment classes, the interlocking logic configuration allows dynamic reviews, recovery time adjustments, and interlocking logic changes by remote connection. Maximum number of managed doors: 400.

The software is web based and does not require any software installation on PC.

GMP Annex 1 is the EU standard for “The Manufacture of Sterile Medicinal Products”. The manufacture of sterile products is subject to special requirements in order to minimize risks of microbiological, particulate and pyrogen contamination.


According to ISO 14644 standard, cleanrooms are required to be equipped with either a soft or a hard interlocking system. The requirement is challenging especially when it comes to the modernization of existing or modular systems. Many of these are not equipped with interlocks so the system must be added later to comply with the standard.


Power supply:

24 Vdc by external power supply


Plastic case with wall mounting brackets

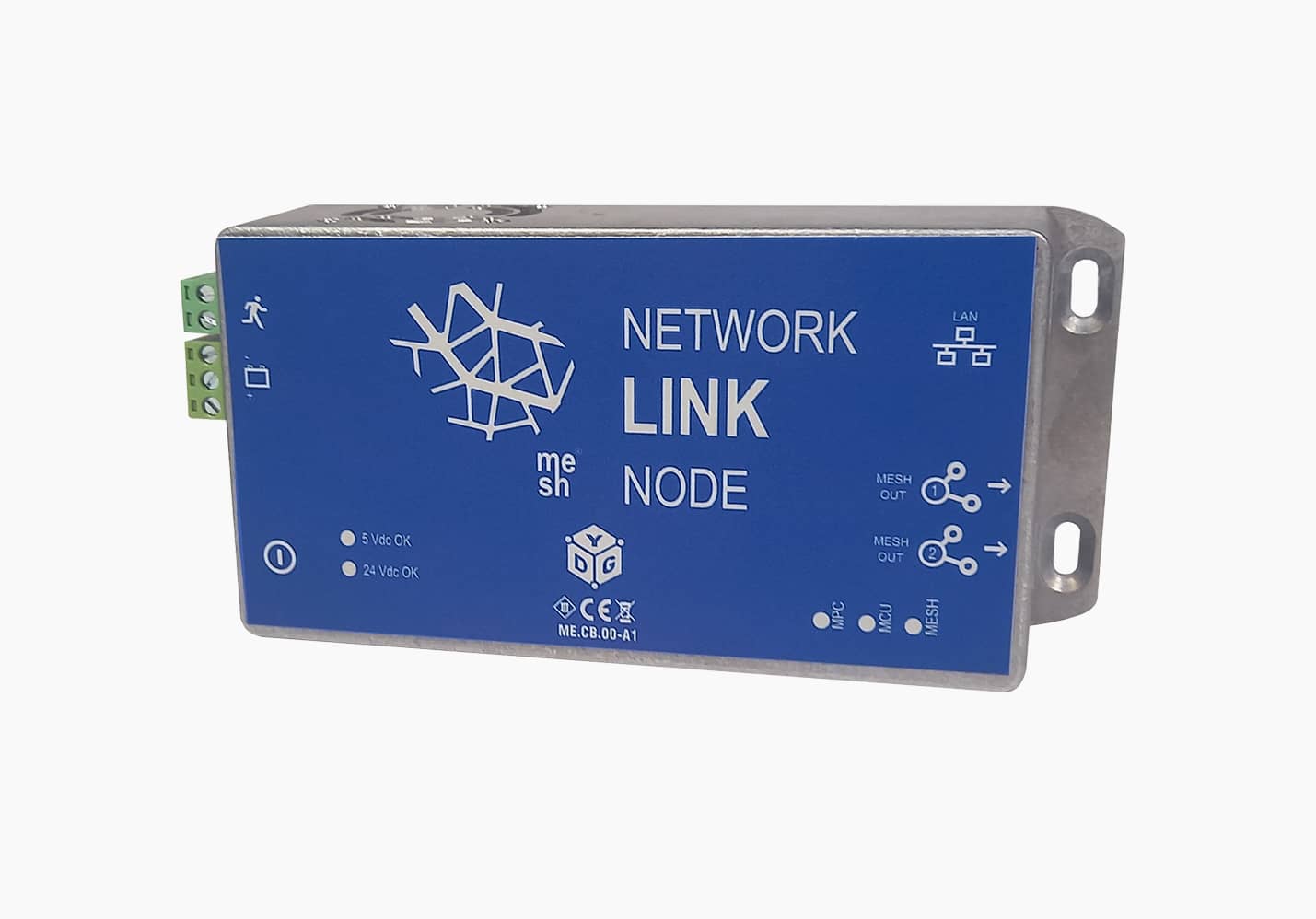

Connection to other modules: RJ45

Door/reader/LAN connection: RJ45

24 Vdc power supply: jack terminal

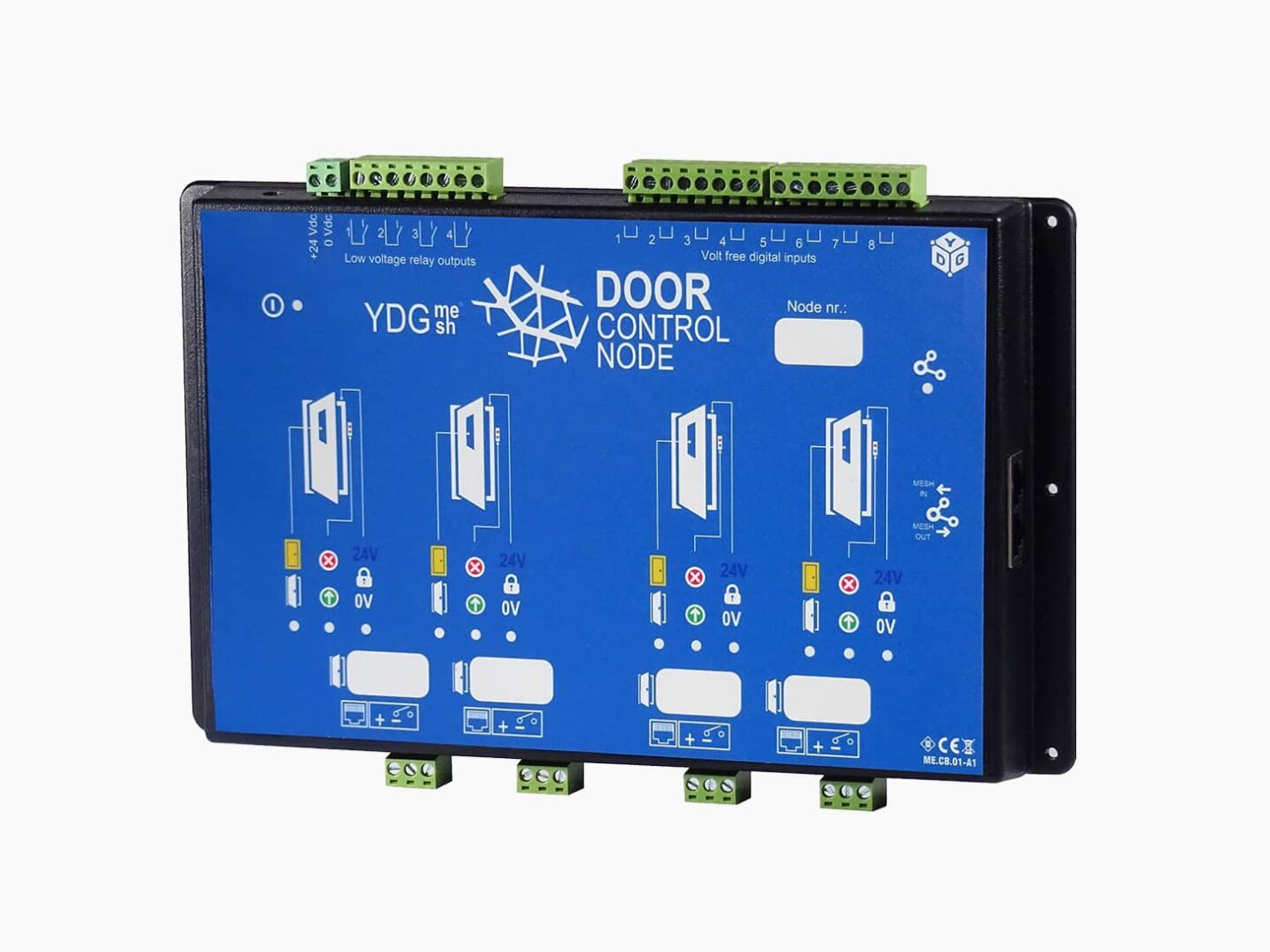

Doors managed (Door Control Node):

Up to 400 with 100 modules in daisy chain

ISO Rating:

ISO 4, ISO 5, ISO 6, ISO 7, ISO 8
