Electronic stand-alone interlocking system

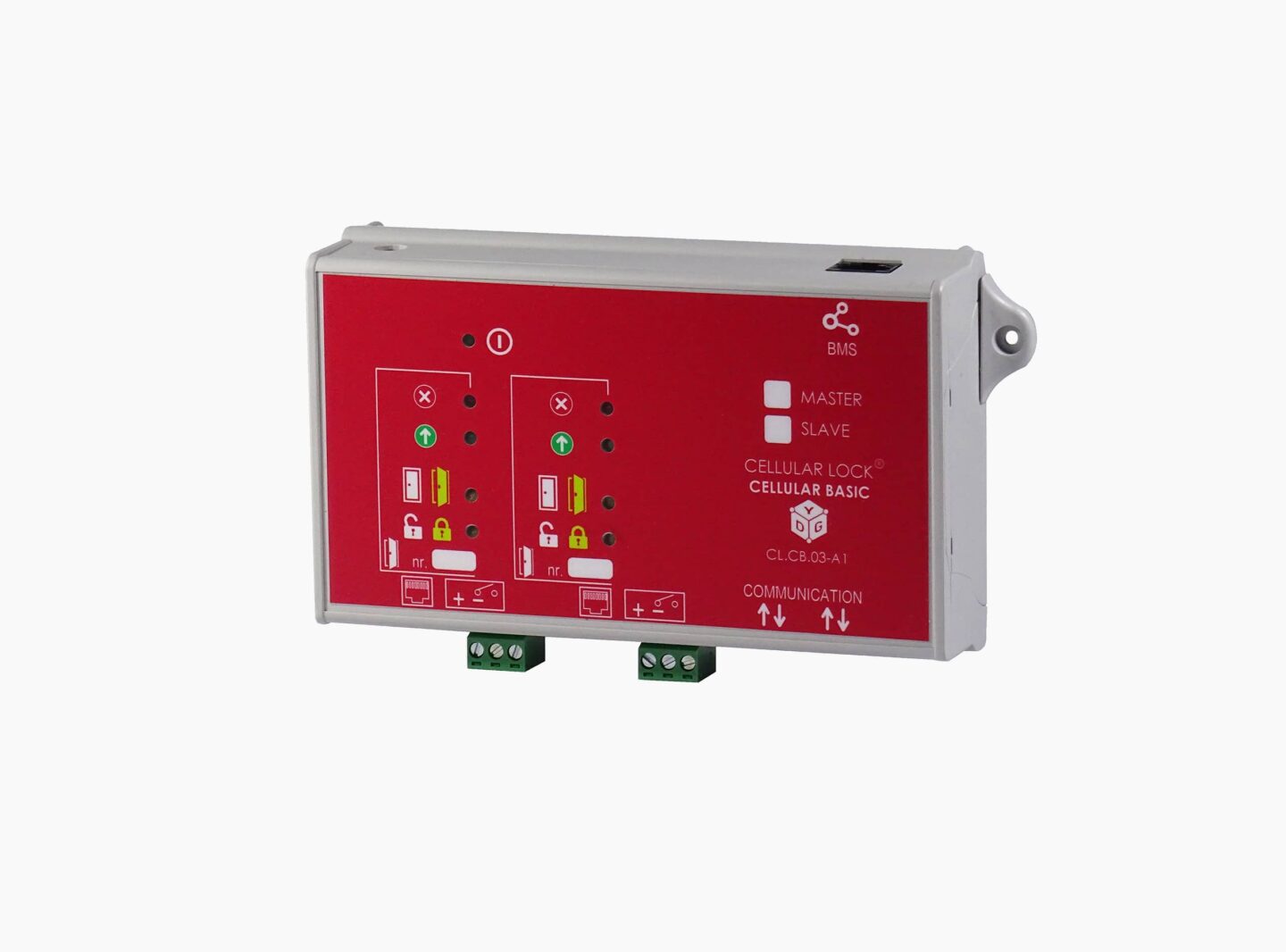

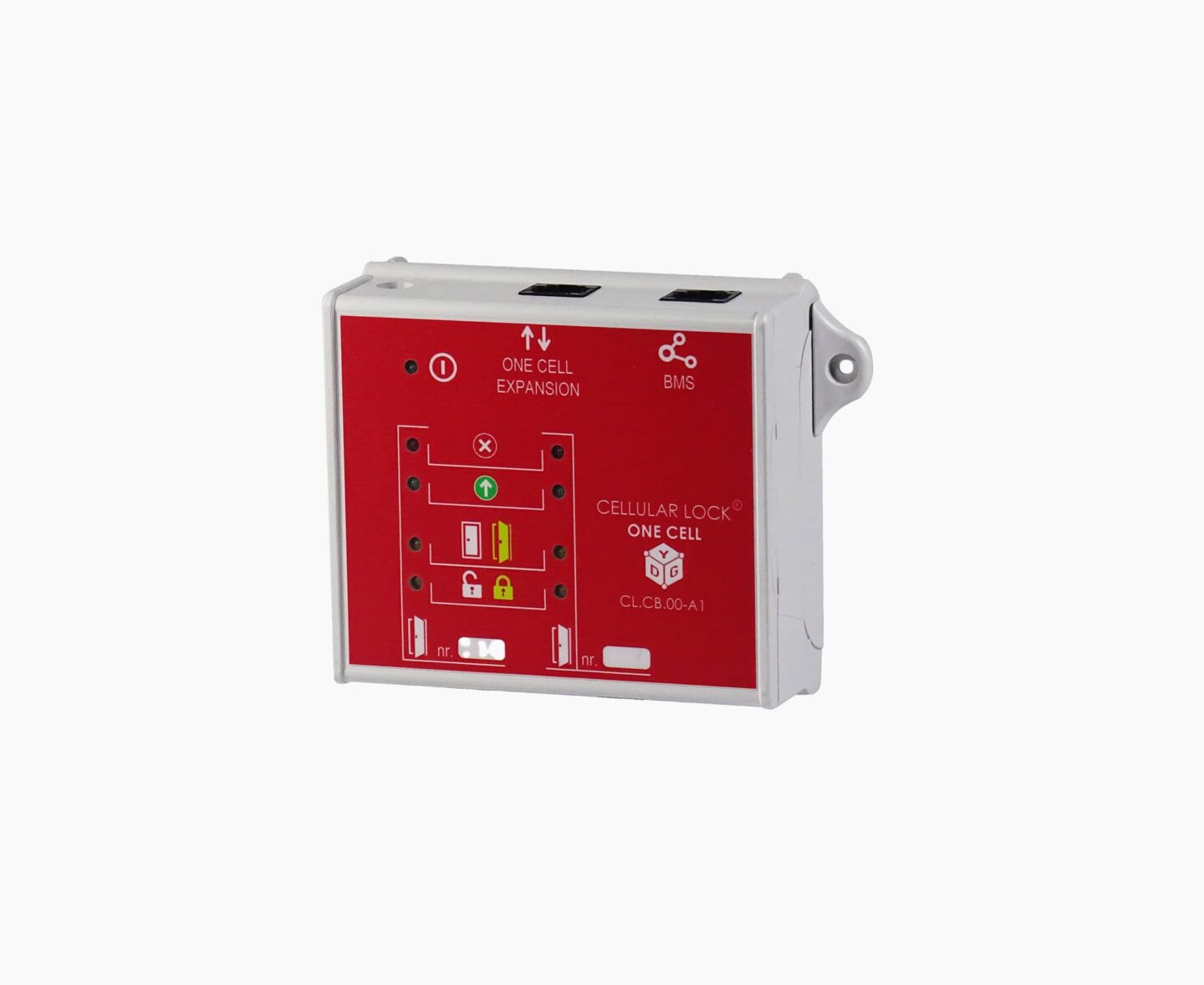

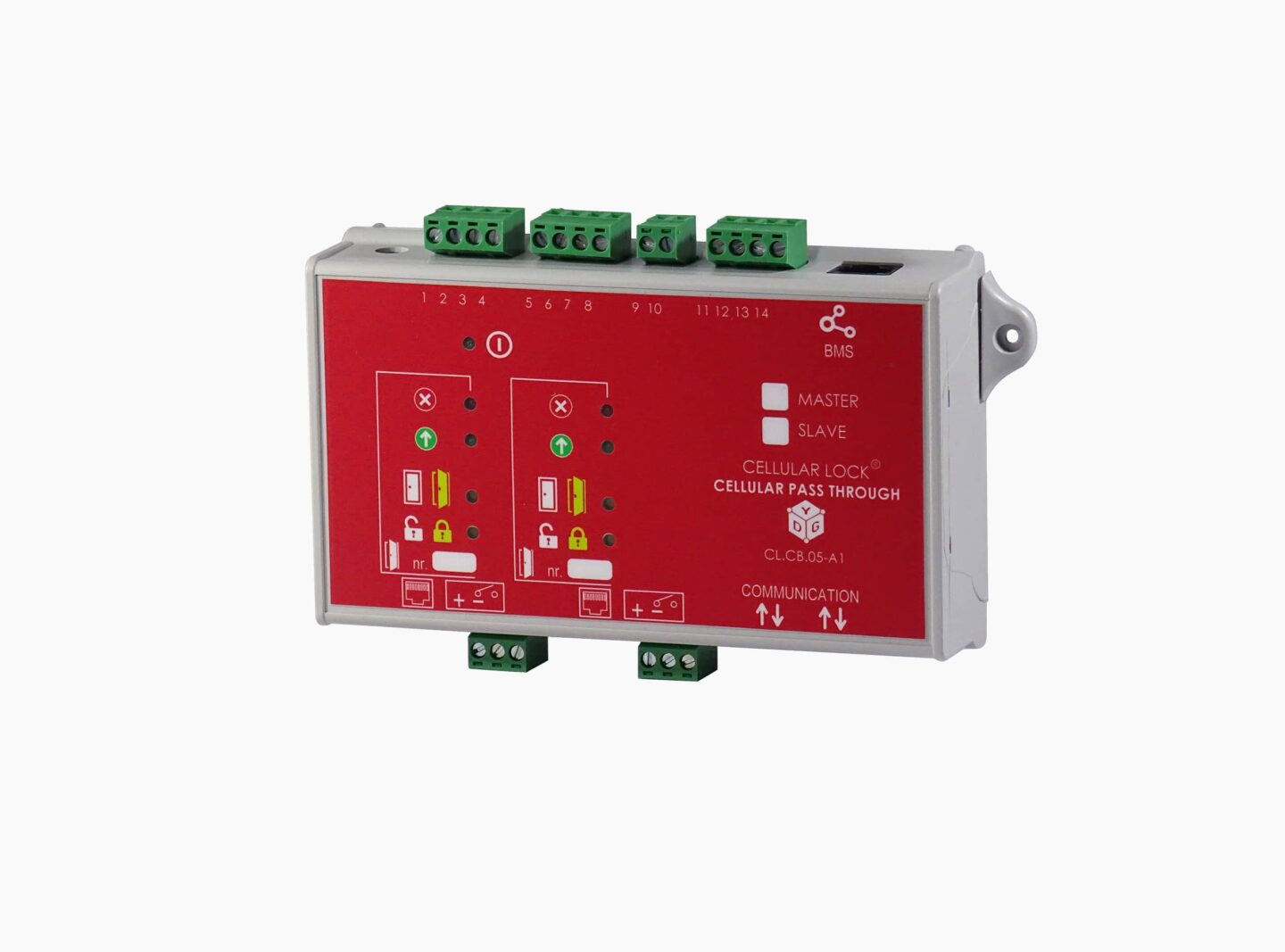

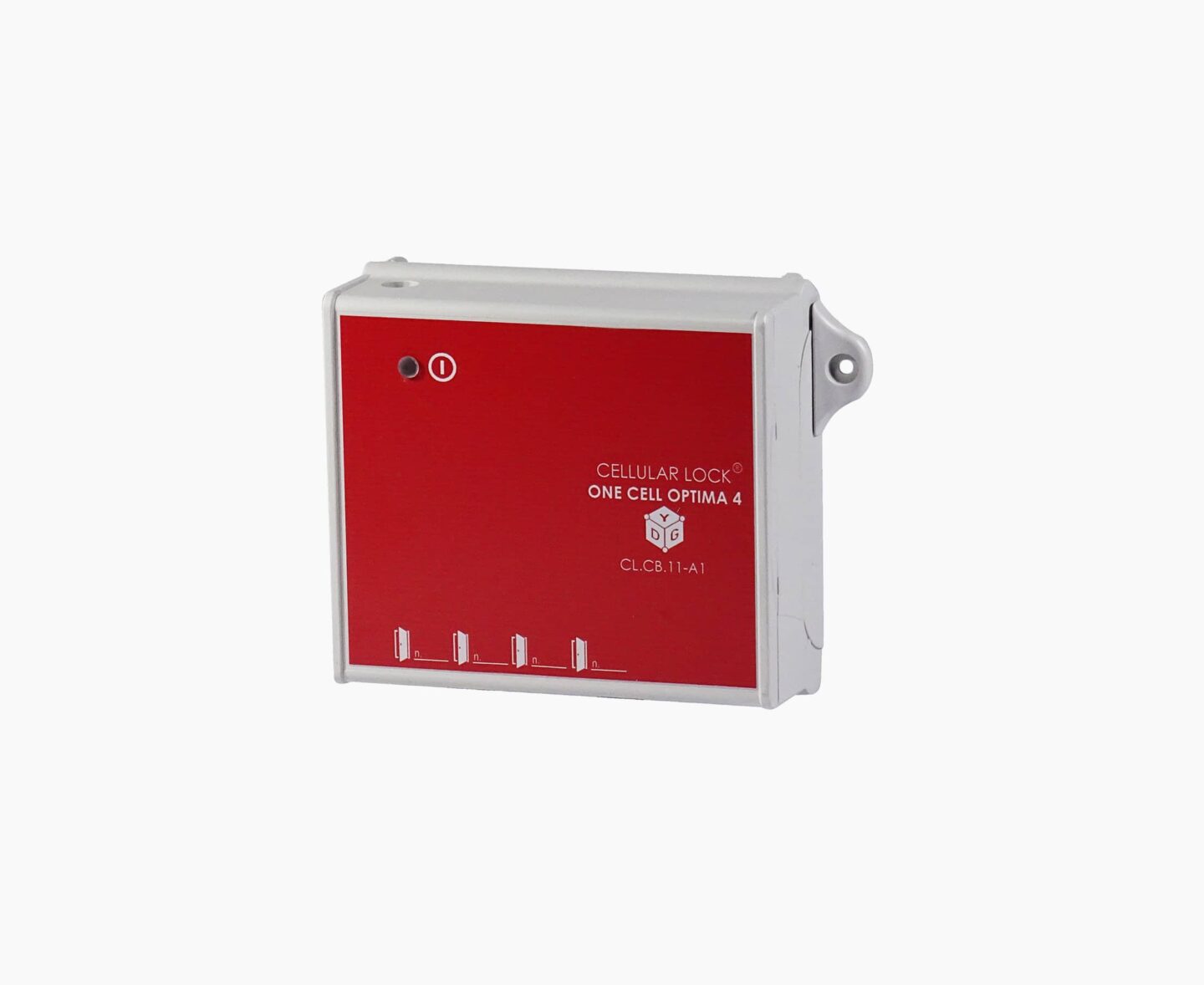

Cellular Lock is a stand-alone door interlocking system for cleanrooms. The control units are available in 8 different configurations to meet all the needs of contamination-controlled environments. Recovery time, access control management, automatic doors, door status mirroring, free choice of interlocking logics. Installation is completely plug ‘n play. Maximum number of doors managed in the same door interlocking logic: 10.

GMP Annex 1 is the EU standard for “The Manufacture of Sterile Medicinal Products”. The manufacture of sterile products is subject to special requirements in order to minimize risks of microbiological, particulate and pyrogen contamination.


According to ISO 14644 standard, cleanrooms are required to be equipped with either a soft or a hard interlocking system. The requirement is challenging especially when it comes to the modernization of existing or modular systems. Many of these are not equipped with interlocks so the system must be added later to comply with the standard.


Power supply:

24 Vdc by 90 – 264 Vac

47 – 63 Hz fed external power pack


Plastic case with wall mounting brackets


Power: 2.1 jack

Door connection: RJ45

Doors managed:

Up to 10

ISO Rating:

ISO 4, ISO 5, ISO 6, ISO 7, ISO 8
