MODULAR CEILINGS

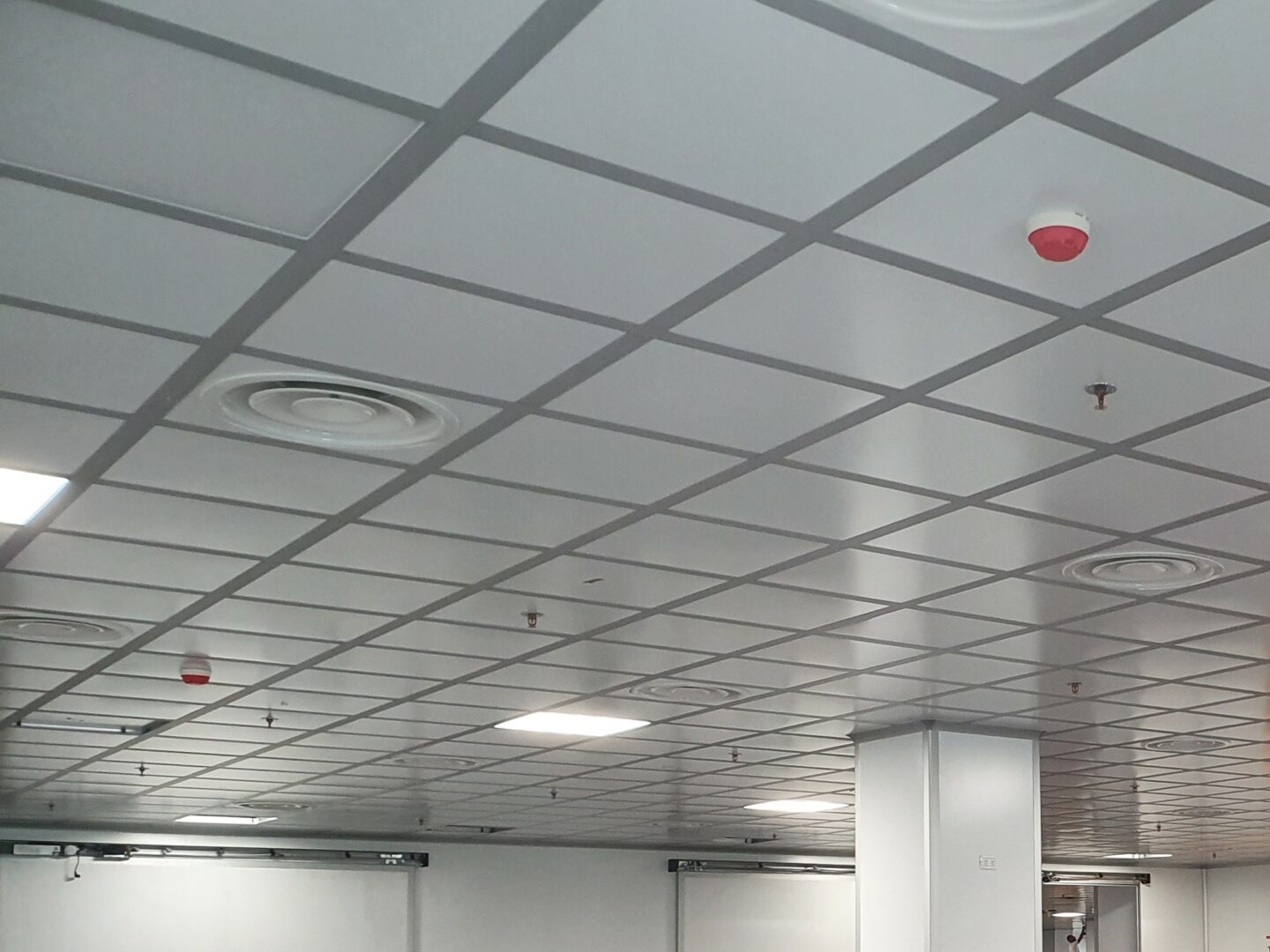

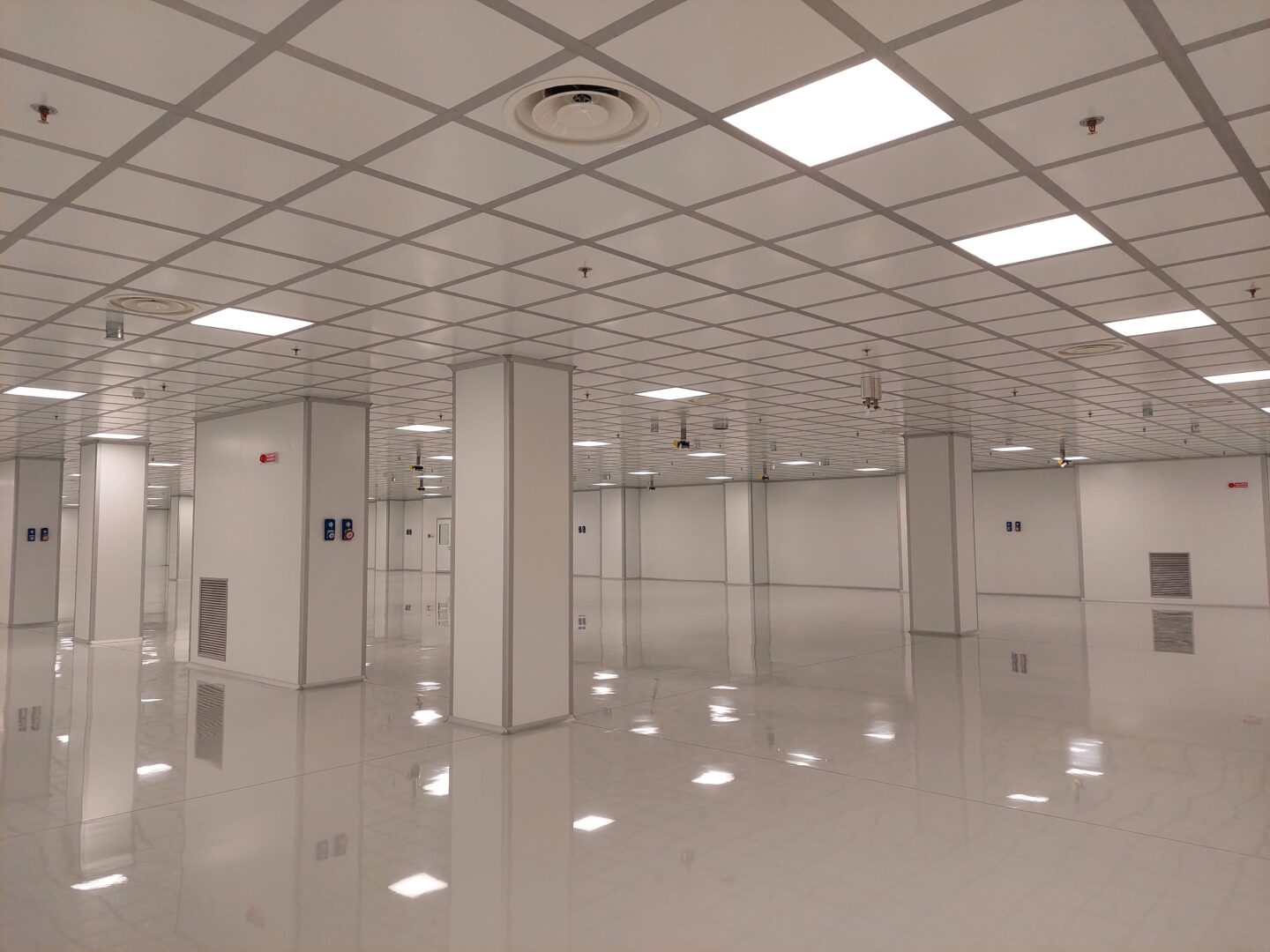

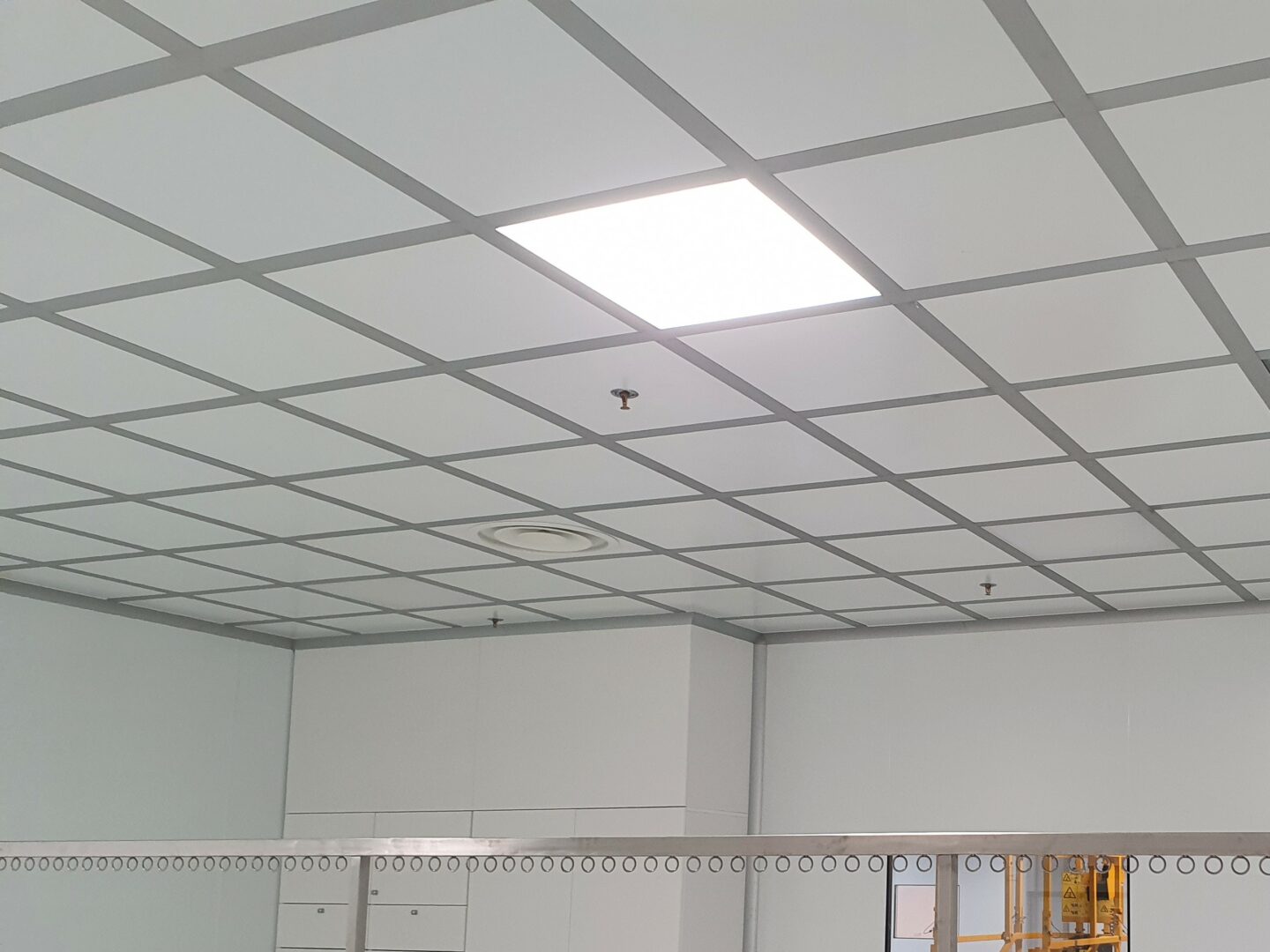

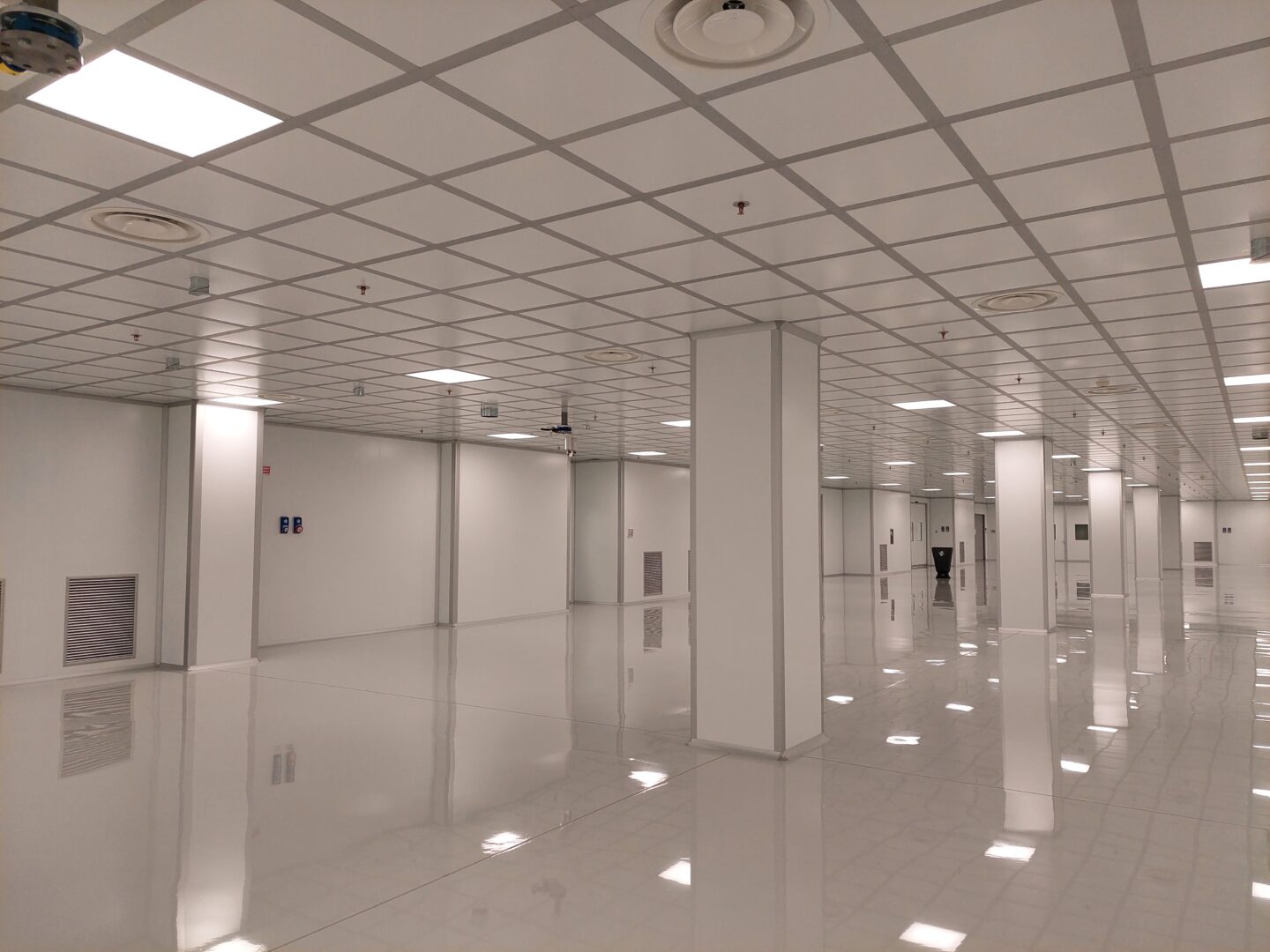

Modular false ceilings
Our modular false ceilings consist of a grid system made of aluminum T profiles. The infill panels can be made with different materials depending on customer’s needs and project requirements such as reaction to fire, thermal and acoustic insulation or flow rate.
Modular false ceilings are suspended with a connection kit to the ceiling of the building or to any independent structure; they are also connected to the walls of the cleanroom using aluminum perimeter profiles.
The modularity is designed to house filters, grilles and lighting fixtures of all sizes.
GMP Annex 1 is the EU standard for “The Manufacture of Sterile Medicinal Products”. The manufacture of sterile products is subject to special requirements in order to minimize risks of microbiological, particulate and pyrogen contamination.
Partition walls and ceilings are built using sandwich panels consisting of a core material between two outer layers, typically composed of smooth and non-porous materials like stainless steel, aluminum or HPL. The core material often consists of substances with excellent insulation properties, such as polystyrene foam, rock wool or aluminum honeycomb.
600×600 mm
600×1200 mm
1200×1200 mm
1200×3000 mm
(custom dimensions upon request)
HPL
Pre-painted aluminum sheet
Plasticized or pre-painted steel sheet
Satin stainless steel sheet
High density sintered polystyrene foam
Rockwool panel with high density fibers
Aluminum honeycomb
